This advanced chamber filter press features a fully enclosed design that prevents filtered cake and filtrate from contacting the ground, eliminating secondary contamination. Its integrated vehicle mounting provides exceptional mobility for cross-site operations, making it the preferred sewage treatment solution for:
Road construction
Mining operations
Oilfield services

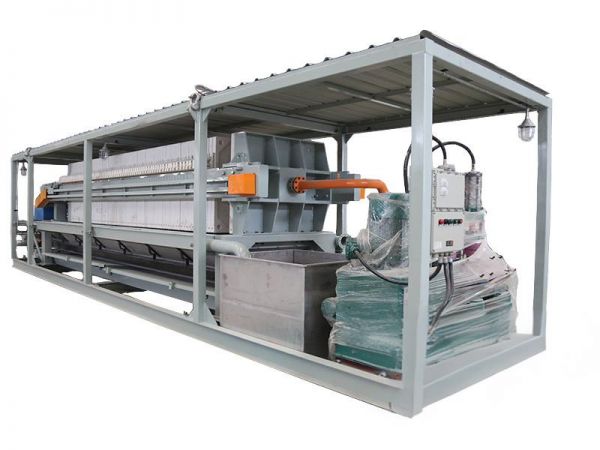

Vehicle-mounted-Chamber-Filter-Press
Technical Parameters
| Model | Filtration Area (㎡) | Cake Thickness (mm) | Chamber Volume (L) | Plates (pcs) | Pressure (MPa) | Weight (Kg) | Dimensions L×W×H (mm) | Power (Kw) |
|---|---|---|---|---|---|---|---|---|
| CZ-XMYZ100/1250-30U | 100 | 30 | 1,506 | 36 | 0.6-4* | 11,900 | 8000×2300×2900 | 28-42 |
| CZ-XMYZ120/1250-30U | 120 | 30 | 1,791 | 43 | 0.6-4* | 12,960 | 8500×2300×2900 | 28-42 |
| CZ-XMYZ140/1250-30U | 140 | 30 | 2,117 | 51 | 0.6-4* | 14,000 | 9000×2300×2900 | 28-42 |
| CZ-XMYZ150/1250-30U | 150 | 30 | 2,239 | 54 | 0.6-4* | 15,200 | 9200×2300×2900 | 28-42 |
| CZ-XMYZ160/1250-30U | 160 | 30 | 2,402 | 58 | 0.6-4* | 15,900 | 9500×2300×2900 | 28-42 |
| CZ-XMYZ180/1250-30U | 180 | 30 | 2,687 | 65 | 0.6-4* | 16,500 | 9900×2300×2900 | 28-42 |
| CZ-XMYZ200/1250-30U | 200 | 30 | 2,972 | 72 | 0.6-4* | 17,600 | 10500×2300×2900 | 28-42 |
| CZ-XMYZ220/1250-30U | 220 | 30 | 3,298 | 80 | 0.6-4* | 18,800 | 10900×2300×2900 | 28-42 |
*Customizable pressure range
Contamination Control
Hermetic structure prevents mud/filtrate spillage
Complies with ISO 14001 environmental standards
Mobility
Integrated chassis design for rapid relocation
Suitable for temporary job sites
Performance
High-pressure filtration (up to 4MPa customizable)
Uniform 30mm cake thickness
Industry Adaptability
Corrosion-resistant materials for harsh environments
Low-maintenance design
Visuals: Add icons for:
Vehicle mounting
⚙️ Pressure customization
♻️ Eco-friendly symbol
Comparisons:
"50% faster deployment than fixed systems"
