Vehicle-mounted Chamber Filter Press

Product Overview
The spill-free chamber filter press, also known as a vehicle-mounted filter press, offers dual advantages:

Containment System: Prevents mud cake and filtrate from contacting the ground, eliminating secondary contamination

Mobility: Designed for rapid relocation between job sites with minimal setup time

This equipment has become the preferred wastewater treatment solution for:

Road construction projects

Mining operations

Oilfield service applications

Inquire Now

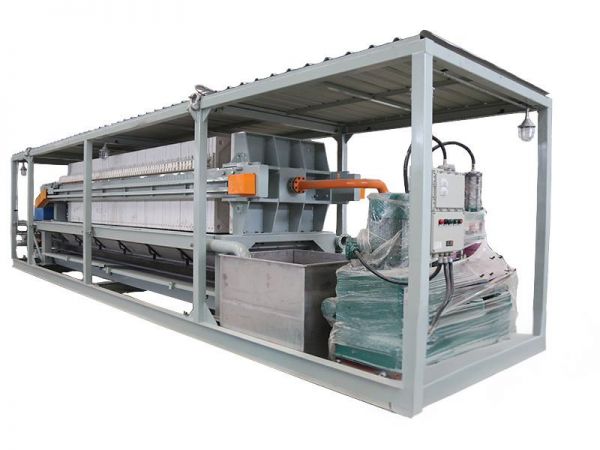

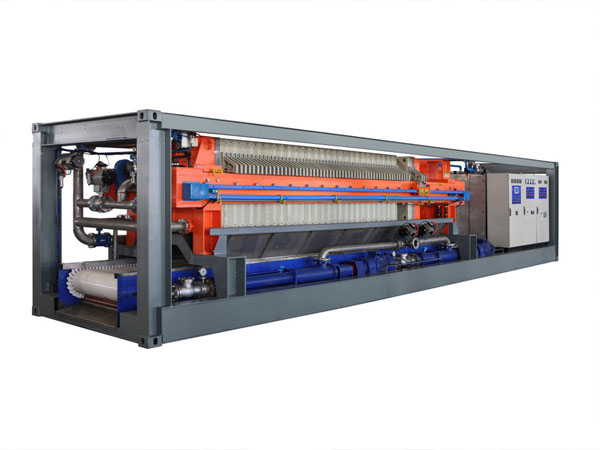

Vehicle-Mounted Chamber Filter Press

Technical Specifications

Model	Filtration Area (m²)	Cake Thickness (mm)	Chamber Volume (L)	Plates (pcs)	Pressure Range (MPa)	Weight (kg)	Dimensions L×W×H (mm)	Power (kW)
CZ-XMYZ100/1250-30U	100	30	1,506	36	0.6-4 (customizable)	11,900	8000×2300×2900	28-42
CZ-XMYZ120/1250-30U	120	30	1,791	43	0.6-4	12,960	8500×2300×2900	28-42
CZ-XMYZ140/1250-30U	140	30	2,117	51	0.6-4	14,000	9000×2300×2900	28-42
CZ-XMYZ150/1250-30U	150	30	2,239	54	0.6-4	15,200	9200×2300×2900	28-42
CZ-XMYZ160/1250-30U	160	30	2,402	58	0.6-4	15,900	9500×2300×2900	28-42
CZ-XMYZ180/1250-30U	180	30	2,687	65	0.6-4	16,500	9900×2300×2900	28-42
CZ-XMYZ200/1250-30U	200	30	2,972	72	0.6-4	17,600	10500×2300×2900	28-42
CZ-XMYZ220/1250-30U	220	30	3,298	80	0.6-4	18,800	10900×2300×2900	28-42
