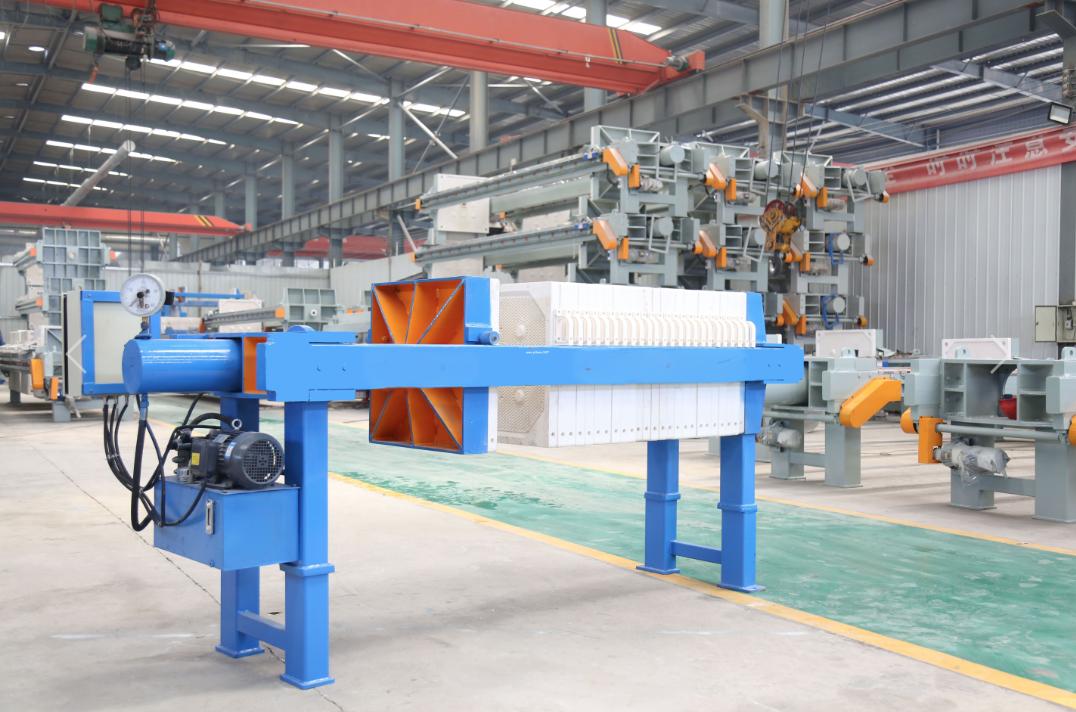

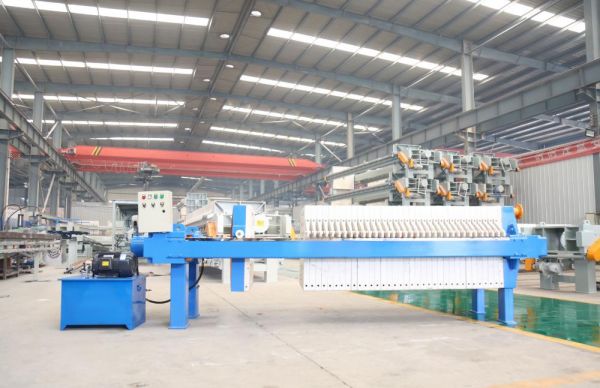

Automatic Pressure maintaining Chamber Filter Press
Scope of application：It is an ideal equipment for sewage treatment in chemical industry,ore mining,dyes,food and other industries.
Core parameters
Filtered area: 20-1200 ㎡
Number of filter plates: 20-94 pieces
Automatic Pressure maintaining Chamber Filter Press
The Automatic Hydraulic Filter Press (also known as Automatic Pressure-Maintaining Filter Press) ensures leak-proof operation and optimal filtration efficiency through its auto-pressure regulation system.
???? Key Features:
✔ Fully Automated Operation – Controlled via an electric control cabinet for ease of use
✔ Continuous Pressure Maintenance – Prevents slurry leakage & ensures stable filtration
✔ Labor & Time Saving – Improves productivity while reducing manual intervention
✔ Wide Industrial Applications – Ideal for chemicals, mining, dyes, food processing, and wastewater treatment
✅ Auto-Pressure Retention – Maintains consistent filtration pressure for higher efficiency
✅ Leak-Proof Design – Ensures no slurry spillage during operation
✅ User-Friendly Control – Simple operation via centralized electric panel
✅ Energy & Cost Efficient – Reduces manpower requirements and operational downtime
| Model | Filtration Area (m²) | Filter Plate Size (mm) | Cake Thickness (mm) | Chamber Volume (L) | Plates (pcs) | Pressure (MPa) | Motor Power (kW) | Weight (kg) | Dimensions L×W×H (mm) | Foundation (mm) L×B×D×H |
|---|---|---|---|---|---|---|---|---|---|---|
| X (AM) Y30/800-30U (BK) | 30 | 800×800 | 30 | 451 | 28 | 0.6 | 2.2 | 2,170 | 3700×1400×1300 | 2880×600×1000×820 |
| X (AM) Y40/800-30U (BK) | 40 | 800×800 | 30 | 606 | 38 | 0.6 | 2.2 | 2,450 | 4300×1400×1300 | 3480×600×1000×820 |
| X (AM) Y50/800-30U (BK) | 50 | 800×800 | 30 | 748 | 47 | 0.6 | 2.2 | 2,700 | 4840×1400×1300 | 4020×600×1000×820 |
| X (AM) Y60/800-30U (BK) | 60 | 800×800 | 30 | 902 | 57 | 0.6 | 2.2 | 2,980 | 5440×1400×1300 | 4620×600×1000×820 |
| X (AM) Y70/800-30U (BK) | 70 | 800×800 | 30 | 1,056 | 67 | 0.6 | 2.2 | 3,250 | 6040×1400×1300 | 5220×600×1000×820 |
???? Reliable Performance – Auto-pressure retention ensures zero filtration failures
???? Low Maintenance – Robust hydraulic system with long service life
???? Versatile Applications – Suitable for sludge dewatering, chemical processing, mining, and food industries
???? Compact & Durable – Heavy-duty construction with easy installation
PLC Control System – For fully automated filtration cycles
Cake Washing System – Enhances filtrate purity
Conveyor Belt – For automatic cake discharge
✔ Chemical Plants – Efficient slurry separation
✔ Mining & Metallurgy – Ore processing & tailings dewatering
✔ Food & Beverage – Starch, sugar, and edible oil filtration
✔ Wastewater Treatment – Municipal & industrial sludge handling
???? Contact us for customized solutions!
