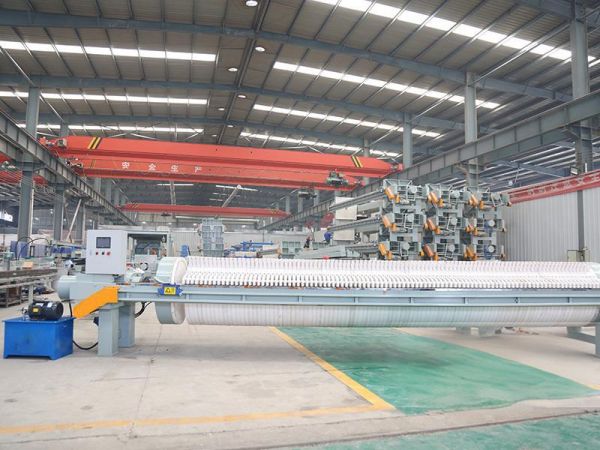

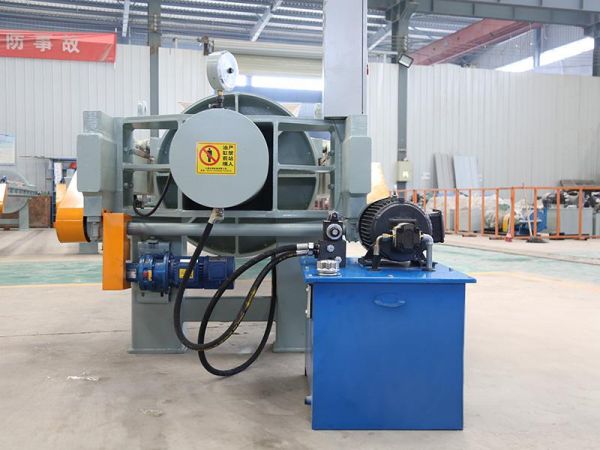

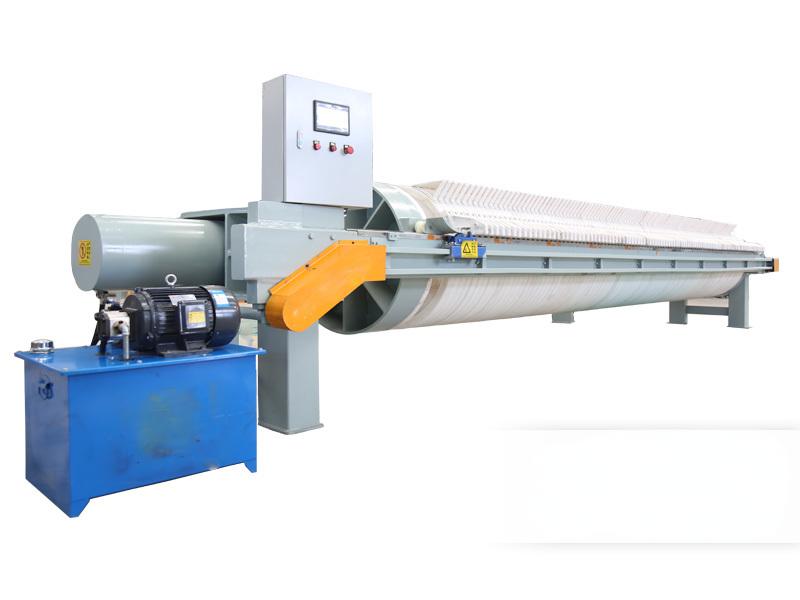

Filter Press with Round filter Plates

Product Introduction

The High-Pressure Round Plate Filter Press utilizes circular filter plates to achieve efficient solid-liquid separation for industrial wastewater treatment. Designed for high-filtration-pressure applications, it significantly reduces cake moisture content, meeting strict environmental standards while lowering disposal/transport costs.

Key Applications:
✔ Stone Processing – Slurry dewatering
✔ Ceramics/Kaolin – Clay purification
✔ Building Materials – Wastewater recycling
✔ Other Industries – High-solids separation

Product Advantages

✅ Superior Dewatering Performance

1.0-2.0 MPa filtration pressure – Higher than conventional plate filters

Low-moisture cakes – Reduces weight for cheaper transportation

✅ Robust Construction

Circular plate design – Ensures even pressure distribution

Heavy-duty materials – Long-lasting under continuous operation

✅ Cost-Efficient Operation

Lower cake disposal costs due to reduced water content

Energy-saving motor configuration

✅ Easy Maintenance

Simplified plate alignment

Quick-release mechanisms

Technical Specifications

Model

Filtration Area (m²)

Plate Diameter (mm)

Cake Thickness (mm)

Chamber Volume (L)

Plates (pcs)

Pressure (MPa)

Power (kW)

Weight (kg)

Dimensions L×W×H (mm)

Foundation (mm) L×B×D×H

XAM80/Φ1200-30    80    Φ1200    30    1,203    42    1.0-2.0    7.5    5,413    5685×1800×1550    4585×910×1400×950

XAM100/Φ1200-30    100    Φ1200    30    1,511    53    1.0-2.0    7.5    6,040    6400×1800×1550    5300×910×1400×950

XAM120/Φ1200-30    120    Φ1200    30    1,791    63    1.0-2.0    7.5    6,610    7050×1800×1550    5950×910×1400×950

XAM140/Φ1200-30    140    Φ1200    30    2,098    74    1.0-2.0    7.5    7,237    7765×1800×1550    6665×910×1400×950

XAM160/Φ1200-30    160    Φ1200    30    2,406    85    1.0-2.0    7.5    7,864    8480×1800×1550    7380×910×1400×950

XAM180/Φ1200-30    180    Φ1200    30    2,713    96    1.0-2.0    7.5    8,491    9195×1800×1550    8095×910×1400×950

XAM200/Φ1200-30    200    Φ1200    30    2,994    106    1.0-2.0    7.5    9,061    9845×1800×1550    8745×910×1400×950

XAM220/Φ1200-30    220    Φ1200    30    3,302    117    1.0-2.0    7.5    9,688    10560×1800×1550    9460×910×1400×950

Why Choose This Filter Press?

???? Higher Efficiency – Processes larger volumes with lower moisture retention
???? Durable Design – Built for 24/7 industrial use
???? Lower Operational Costs – Saves on sludge handling & transport
???? Easy Integration – Fits into existing wastewater systems

Optional Features

◼ Automatic Plate Shifter – For hands-free operation
◼ Cake Washing System – Improves filtrate clarity
◼ Smart Control Panel – Programmable cycles & remote monitoring

Request a Quote Today!
???? Contact us for custom configurations tailored to your industry needs.
