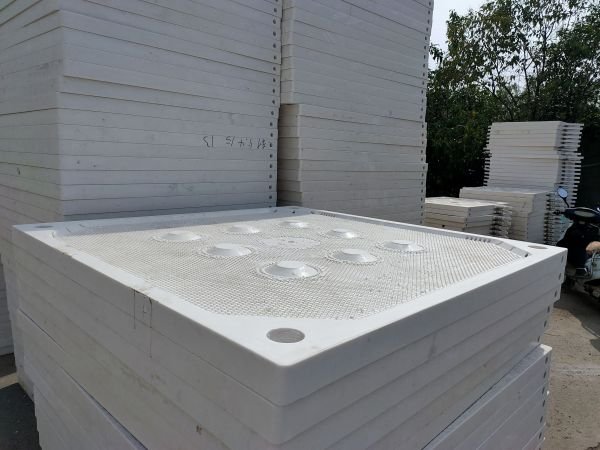

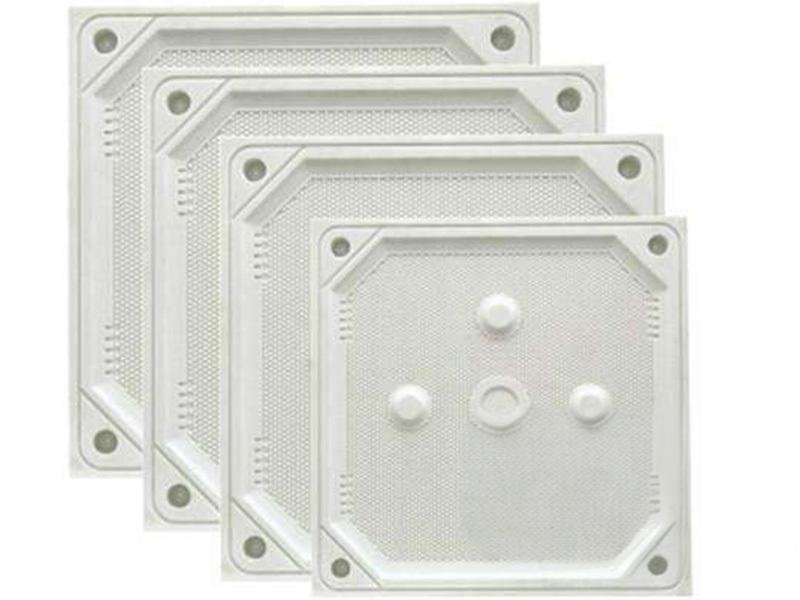

The filter plate is an important part of filter press. Its raw materials include Reinforced Polypropylene (RPP), Glass Fiber Reinforced Polypropylene, Thermoplastic Elastomer (TPE), cast iron, stainless steel and so on. The filter press plates are mainly used for mechanically squeezing solid materials separated from suspension, with the help of filter cloth. On the surface of filter plates, there are many nubs and grooves, which are used for supporting filter cloth and allow filtrate flow off efficiently.
Core parameters
Size of Filter Plates: 380-2000 mm
Thickness of Filter Plates: 45-85 mm
The filter plate is an important part of filter press
Hesaide manufactures high-performance filter plates for industrial filtration, available in multiple materials and configurations to meet diverse process requirements. Our plates ensure efficient solid-liquid separation, durability, and low maintenance across various industries.
| Type | Key Features | Applications |
|---|---|---|
| Reinforced Polypropylene | Lightweight, corrosion-resistant, cost-effective | Chemical, food, wastewater treatment |
| Glass Fiber Polypropylene | Enhanced strength, high-temperature resistance | Mining, metallurgy, harsh environments |
| Rubber Diaphragm | Flexible membrane for secondary squeezing, ultra-low cake moisture | Sludge dewatering, high-pressure filtration |
| Cast Iron | Heavy-duty, high-pressure resistance, long lifespan | Mining, ceramics, abrasive slurries |
| Stainless Steel | Superior corrosion resistance, hygienic, easy to clean | Pharmaceuticals, food, chemical processing |
Middle Feed – Standard for most applications
Corner Feed – Prevents clogging in high-solid slurries
Upper Middle Feed – Optimized for fast filtration
| Parameter | Chamber Filter Plate | Membrane Filter Plate |
|---|---|---|
| Number of Plates | 4–139 (customizable) | 23–139 (customizable) |
| Cake Thickness (mm) | 25, 30, 35, 40 | 30, 35, 40 |
| Standard Sizes (mm) | 320–2000 (see full list below) | 870–2000 |
Full Size Range (mm):
320, 380, 450, 500, 510, 550, 630, 700, 710, 800, 830, 870, 890, 900, 1000, 1250, 1500, 1600, 2000, 1500×2000
✅ Chamber Filter Plates
✔ Plate-shifting device available
✔ Easy cake discharge
✔ Simple operation
✔ Suitable for standard filtration
✅ Membrane Filter Plates
✔ Lowest cake moisture (due to secondary squeezing)
✔ Optional cake washing
✔ Higher filtration efficiency
✔ Ideal for sludge dewatering & high-pressure applications
Chemical/Pharma: Stainless steel or polypropylene (corrosion-resistant)
Mining/Metallurgy: Cast iron or glass fiber polypropylene (abrasion-resistant)
Food Processing: Stainless steel (hygienic, easy cleaning)
Wastewater Treatment: Rubber diaphragm (lowest moisture content)
Standard Filtration → Chamber plates
Ultra-Dry Cakes → Membrane plates
High-Temperature/Pressure → Glass fiber or cast iron
✔ Customizable – Multiple materials, sizes, and feed options
✔ High Durability – Engineered for long-term industrial use
✔ Optimized Performance – Low cake moisture, easy cleaning
✔ Global Standards – ISO-certified manufacturing
Automatic Plate Shifters – Reduce manual labor
Cake Washing Systems – Improve filtrate purity
High-Pressure Pumps – For membrane plate squeezing
Contact us for tailored solutions based on your filtration needs!
