Scope of application:Mainly used in papermaking,coking,medicine(antibiotics,traditional Chinese medicine extraction,etc.),food (starch sugar,starch),chemical industry (dyes,pigments)and other industries.
Core parameters
Filtration Area: 15-1500 ㎡
Number of Filter Plates: 15-111pieces

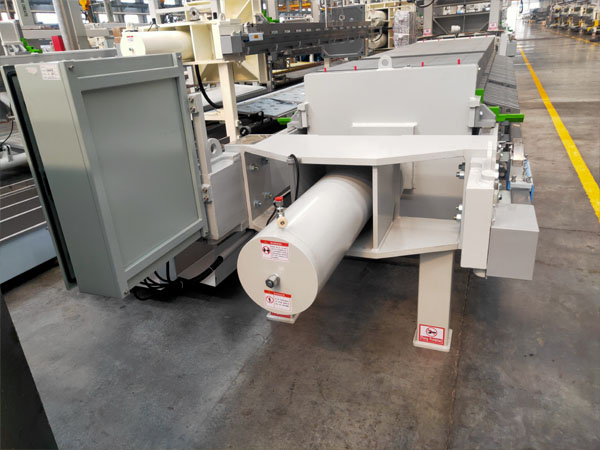

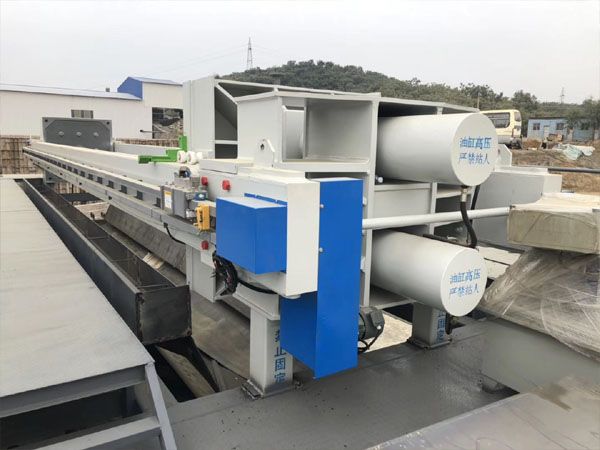

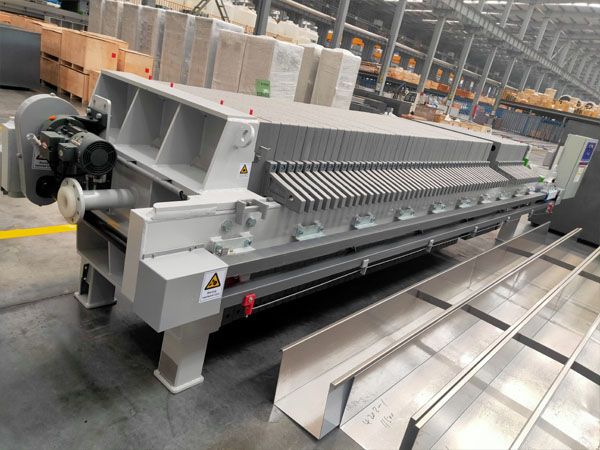

Chamber Filter Press with Automatic Plate Shifter
Product Overview
This advanced chamber filter press features an automatic plate shifting system that delivers two key benefits:
Secondary Pressing Technology - Reduces cake moisture content significantly
Fully Automated Operation - Completes the entire filtration cycle including cake discharge automatically
The machine's scientific structural design ensures:
Exceptional operational stability
Long service life
User-friendly maintenance
Significant labor savings
Primary Applications:
✓ Paper manufacturing
✓ Coking plants
✓ Pharmaceutical (antibiotics, TCM extraction)
✓ Food processing (starch/sugar production)
✓ Chemical industry (dyes & pigments)
Key Advantages
✔ Automated Efficiency
Automatic plate shifter eliminates manual intervention
Multiple auxiliary device options for customized workflows
✔ Superior Separation
Effective solid-liquid separation with formed filter cakes
Clear filtrate suitable for recycling or safe discharge
✔ Process Optimization
Secondary pressing reduces moisture content
Compact cakes simplify transportation
Technical Specifications
| Model | Filtration Area (m²) | Plate Size (mm) | Cake Thickness (mm) | Chamber Volume (L) | Plates (pcs) | Pressure (MPa) | Power (kW) | Weight (kg) | Dimensions L×W×H (mm) | Foundation Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| Z30/870-30 | 30 | 870×870* | 30 | 460 | 23 | 0.6 | 2.2 | 3,046 | 3320×1400×1300 | 2565×650×1380×815 |
| Z40/870-30 | 40 | 870×870 | 30 | 595 | 30 | 0.6 | 2.2 | 3,593 | 3700×1400×1300 | 2950×650×1380×815 |
| Z50/870-30 | 50 | 870×870 | 30 | 748 | 38 | 0.6 | 2.2 | 4,057 | 4140×1400×1300 | 3390×650×1380×815 |
| Z60/870-30 | 60 | 870×870 | 30 | 902 | 46 | 0.6 | 2.2 | 4,597 | 4580×1400×1300 | 3830×650×1380×815 |
| Z70/870-30 | 70 | 870×870 | 30 | 1,056 | 54 | 0.6 | 2.2 | 5,136 | 5020×1400×1300 | 4270×650×1380×815 |
| Z80/870-30 | 80 | 870×870 | 30 | 1,210 | 62 |
