Hesaide slurry pump is designed according to advanced fluid theory. Compact structure can guarantee good sealing ability of the pump. It is applicable to industries, such as petroleum, chemical engineering, shipping, electric power, grain and oil, food, medical treatment, building materials and metallurgy.
Core parameters
Flow Rate: 15-279 m³/h
Head: 40-130 m

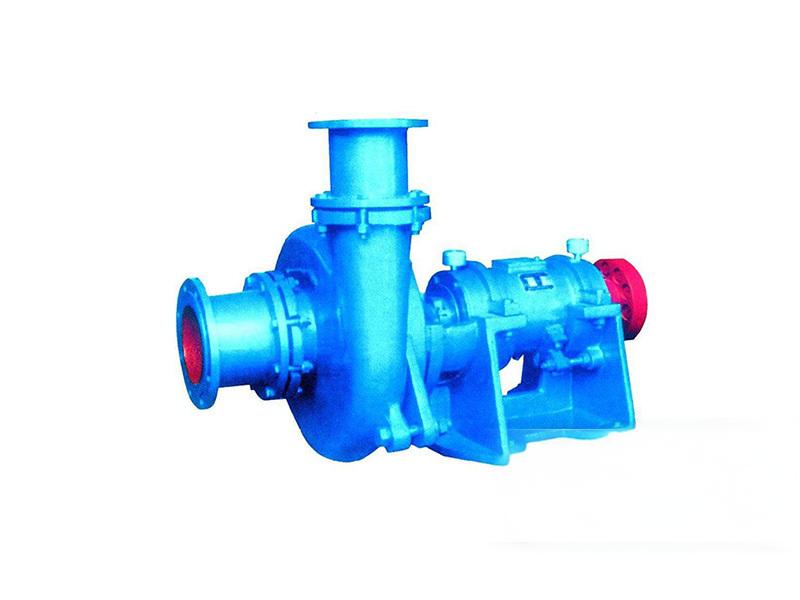

Hesaide Slurry Pump
The Hesaide ZJE Slurry Pump is engineered with advanced fluid dynamics to optimize performance in high-solid applications. Its compact and robust design ensures excellent sealing, low vibration, and extended service life for filter cloths and plates.
Key Advantages:
✔ High Efficiency – Minimizes energy consumption
✔ Anti-Corrosion – Suitable for abrasive & chemical slurries
✔ Intelligent Flow-Pressure Adjustment – Reduces hydraulic shock on filter plates
✔ Wide Compatibility – Works with all major filter press models
Initial Stage: High flow rate, low pressure – Rapid filling of filter chambers
Final Stage: Low flow rate, high pressure – Gentle yet effective cake formation
Shaft Seal Design – Prevents leakage & extends maintenance intervals
Heavy-Duty Construction – Resists wear in harsh environments
Low Vibration – Protects filter cloth & plate integrity
Stable Performance – Consistent pressure for uniform filtration
Petroleum – Drilling mud transfer
Chemical Processing – Abrasive slurry pumping
Mining/Metallurgy – Tailings & ore processing
Food & Pharma – Hygienic fluid transfer
Wastewater Treatment – Sludge dewatering
| Model | Speed (r/min) | Flow (m³/h) | Head (m) | Max Shaft Power (kW) | Motor | Inlet/Outlet (mm) | Drive Type |
|---|---|---|---|---|---|---|---|
| 50ZJE-310 | 1450 | 20-50 | 65 | 13 | Y160L-4 (15kW) | 65/80 | Direct Coupling |
| 50ZJE-330 | 1450 | 30-50 | 75 | 18.5 | Y180L-4 (22kW) | 65/80 | Direct Coupling |
| 65ZJE-340 | 1480 | 50-62 | 80 | 26.5-40 | Y200L-4/Y225M-4 (30-45kW) | 100/100 | Direct Coupling |
| 80ZJE-340 | 1480 | 76 | 80 | 49 | Y250S-4 (55kW) | 100/150 | Direct Coupling |
| 100ZJE-340 | 1480 | 83-98 | 80 | 69-80 | Y280M-4 (75-90kW) | 100/150 | Direct Coupling |
| Model | Speed (r/min) | Flow (m³/h) | Head (m) | Max Shaft Power (kW) | Motor | Inlet/Outlet (mm) | Drive Type |
|---|---|---|---|---|---|---|---|
| 50ZJE-200 | 2900 | 15-25 | 62 | 5.5-11 | Y132M-2/Y160M-2 (7.5-15kW) | 50-65/65-80 | Direct Coupling |
| 65ZJE-230 | 2900 | 37-40 | 68 | 15-18 | Y160M-2/Y180M-2 (18.5-22kW) | 65/80 | Direct Coupling |
| 65ZJE-250 | 2900 | 50 | 80 | 30 | Y200L-2 (37kW) | 65/80 | Direct Coupling |
✅ Energy Efficient – Optimized impeller design reduces power consumption
✅ Low Maintenance – Robust seals & wear-resistant materials
✅ Wide Range – Multiple flow/pressure configurations
✅ Filter Press Friendly – Gentle on filter cloths & plates
Variable Frequency Drive (VFD) – For precise speed control
Custom Material Options – Stainless steel, high-chrome alloys
Remote Monitoring – IoT-enabled performance tracking
???? Contact us for pump selection guidance based on your slurry properties!
