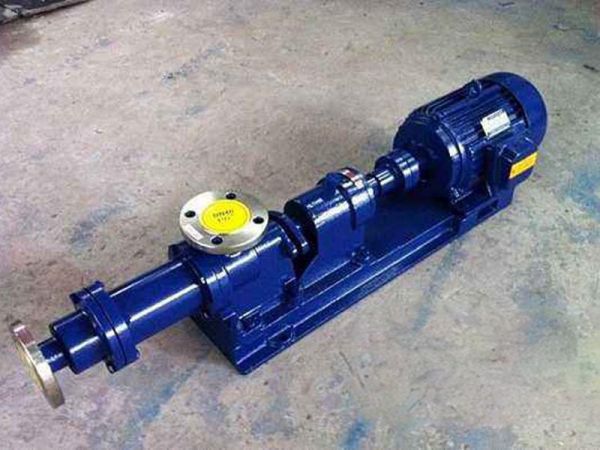

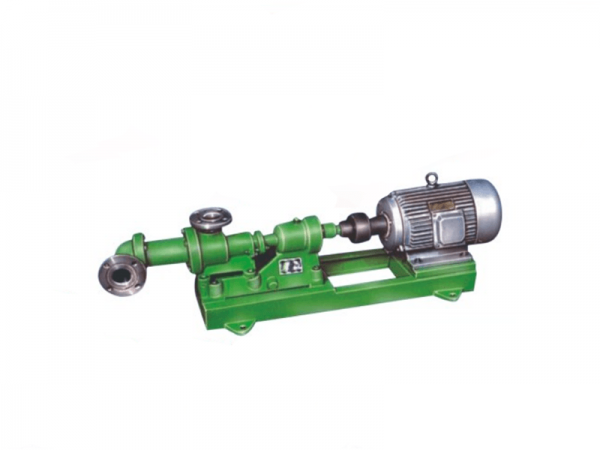

Hesaide Single Screw Pump
I-1B series slurry pump is single-screw positive rotary pump. It pushes slurry from suction inlet to discharge outlet along spiral groove by the rotation of screw in screw bush. This pump is widely used in chemical industry, pharmacy, brewing, papermaking, food and other industries.
Core parameters
Flow Rate: 1.2-24 m³/h
Head: 50-80 m
Hesaide Single Screw Pump
The I-1B Series is a single-screw positive displacement pump designed for high-viscosity, high-solids, and abrasive slurries. It operates via a rotating screw within a stator, gently pushing materials through the pump without turbulence or shear damage.
✔ Ideal for: Thick slurries, viscous fluids, and shear-sensitive mixtures
✔ Key Industries: Chemical, pharmaceutical, food & beverage, paper/pulp, wastewater
| Feature | Advantage |
|---|---|
| Handles High Solids | Transports particle-laden, high-concentration slurries without clogging |
| Pulse-Free Flow | Smooth, non-pulsating discharge – prevents material degradation |
| Speed-Controlled Flow | Adjustable flow rate via variable-speed drive (proportional to RPM) |
| High-Pressure at Low Flow | Maintains consistent pressure even at reduced speeds |
| Self-Priming | No bottom valve required – reduces maintenance |
| Low Noise & Vibration | Quiet operation with minimal wear |
| Easy Maintenance | Simple design with fewer wear parts |
| Model | Flow (m³/h) | Head (m) | Power (kW) | Inlet (mm) | Suction Lift (m) |
|---|---|---|---|---|---|
| I-1B 1" | 1.5 | 50 | 1.5-6 | 25 | 3 |
| I-1B 1.5" | 3.2 | 80 | 2.2-6 | 40 | 3 |
| I-1B 2" | 5.6 | 80 | 3-6 | 50 | 3 |
| I-1B 2.5" | 6.5 | 60 | 3-6 | 65 | 3 |
| I-1B 3" | 12 | 60 | 11-6 | 100 | 3 |
| I-1B 4" | 16 | 60 | 11-6 | 100 | 3 |
| I-1B 5" | 19 | 60 | 11-6 | 125 | 3 |
| I-1B 6" | 24 | 60 | 15-6 | 150 | 3 |
Notes:
Standard motor power: 1.5–15 kW (customizable)
Material options: Rubber, polyurethane, or stainless steel stator/rotor
✔ Chemical Industry – Acidic/alkaline slurries, polymer transfer
✔ Pharmaceuticals – Gentle handling of sensitive fluids
✔ Food & Beverage – Syrups, pastes, dairy products
✔ Paper/Pulp – High-fiber sludge pumping
✔ Wastewater – Thickened sludge, grit handling
✅ Gentle Material Handling – No shear, no emulsification
✅ Energy Efficient – Low power consumption even at high pressure
✅ Reliable & Durable – Minimal wear due to smooth operation
✅ Easy to Clean – Sanitary design for food/pharma compliance
Variable Frequency Drive (VFD) – Precise flow control
Explosion-Proof Motor – For hazardous environments
Heavy-Duty Stators – Extended life in abrasive applications
???? Contact us for custom configurations based on your slurry properties!
