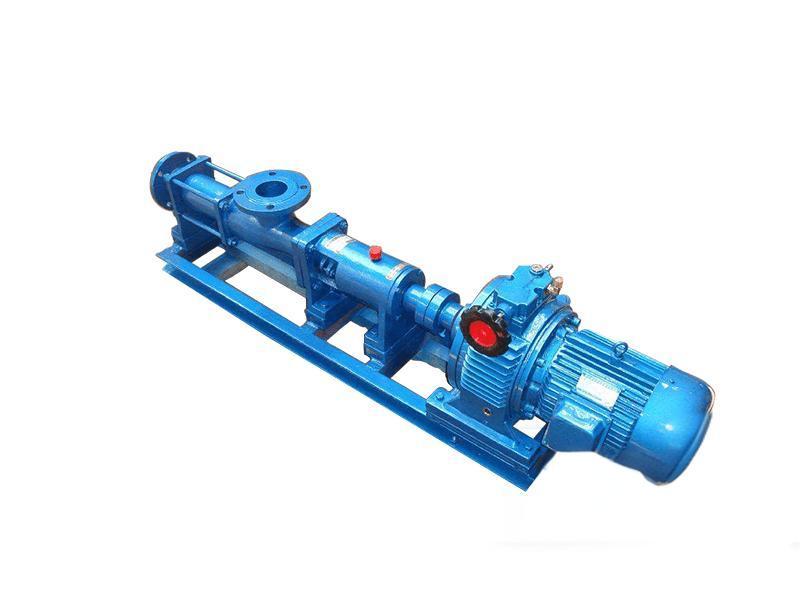

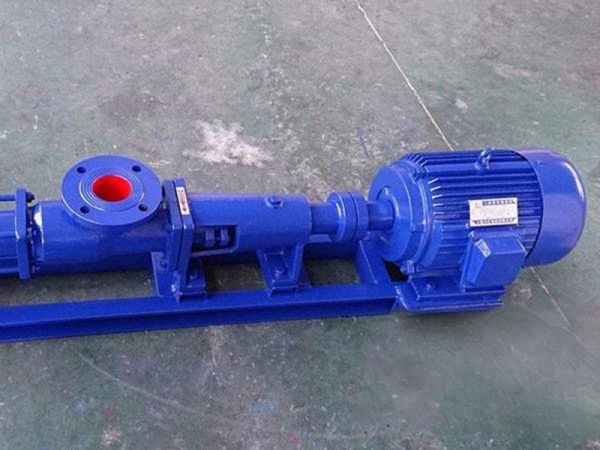

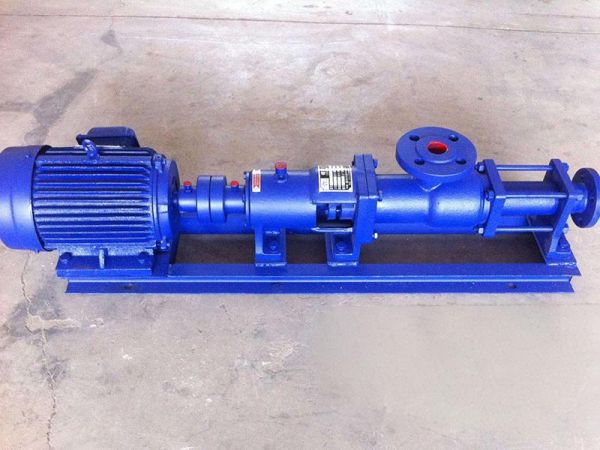

Hesaide single screw pump is widely used in chemical engineering, pharmaceuticals, brewing, papermaking and other industries. Single-head helicalrotor does eccentric rotation in stator with double-head helical inner cavity. Then, annular seal space will be formed between rotor and stator. When the rotor rotates, the volume of annular seal space will change, which can lead to the transport of liquid. That is working principle of single screw pump.
Core parameters
Flow Rate: 2-30 m³/h
Head: 60-120 m
Hesaide single screw pump is widely used in chemical engineering, pharmaceuticals, brewing
The Hesaide G-Series operates on a single-rotor, progressive cavity design:
A helical rotor rotates eccentrically inside a double-helix stator, creating sealed cavities.
As the rotor turns, these cavities move axially, transporting fluid smoothly and continuously without pulsation.
Ideal for viscous, abrasive, or shear-sensitive fluids due to gentle handling.
| Feature | Advantage |
|---|---|
| Handles High Solids | Pumps slurries with particles up to 40% concentration |
| Pulse-Free Flow | Eliminates water hammer and material degradation |
| Pressure Independent of Speed | Maintains high pressure (up to 1.2MPa) even at low flow rates |
| Linear Flow Control | Adjust flow rate precisely via RPM changes (VFD compatible) |
| Self-Priming | No foot valve required – suction lift up to 6m |
| Low Noise/Vibration | Smooth operation for sensitive environments |
| Model | Speed (rpm) | Flow (m³/h) | Pressure (MPa) | Power (kW) | Head (m) | Inlet/Outlet (mm) |
|---|---|---|---|---|---|---|
| G25-1 | 960 | 2 | 0.6 | 1.5 | 60 | 32/25 |
| G25-2 | 960 | 2 | 1.2 | 2.2 | 120 | 32/25 |
| G30-1 | 960 | 5 | 0.6 | 2.2 | 60 | 50/40 |
| G30-2 | 960 | 5 | 1.2 | 3.0 | 120 | 50/40 |
| G35-1 | 960 | 8 | 0.6 | 3.0 | 60 | 65/50 |
| G35-2 | 960 | 8 | 1.2 | 4.0 | 120 | 65/50 |
| G40-1 | 960 | 12 | 0.6 | 4.0 | 60 | 80/65 |
| G40-2 | 960 | 12 | 1.2 | 5.5 | 120 | 80/65 |
| G50-1 | 960 | 20 | 0.6 | 5.5 | 60 | 100/80 |
| G50-2 | 960 | 20 | 1.2 | 7.5 | 120 | 100/80 |
| G60-1 | 960 | 30 | 0.6 | 11 | 60 | 125/100 |
Notes:
Standard materials: Nitrile rubber stator, chrome-plated steel rotor
Optional: Stainless steel (AISI 304/316), polyurethane stator
✔ Chemical: Acid/alkali transfer, polymer slurries
✔ Pharma: Gentle pumping of sensitive fluids
✔ Food/Beverage: Syrups, dairy, fruit pulp
✔ Wastewater: Sludge, grit, and abrasive slurries
✔ Pulp/Paper: High-fiber stock transfer
✅ Shear-Sensitive Handling – Preserves fluid integrity
✅ Energy Efficient – Low power consumption per m³
✅ Low Maintenance – Only 1 moving part (rotor)
✅ Customizable – Multiple sizes, materials, and seals
Variable Frequency Drive (VFD) – For precise flow adjustment
Explosion-Proof Motor – ATEX-certified for hazardous areas
Sanitary Design – EHEDG-compliant for food/pharma
???? Contact us for viscosity-specific recommendations!
