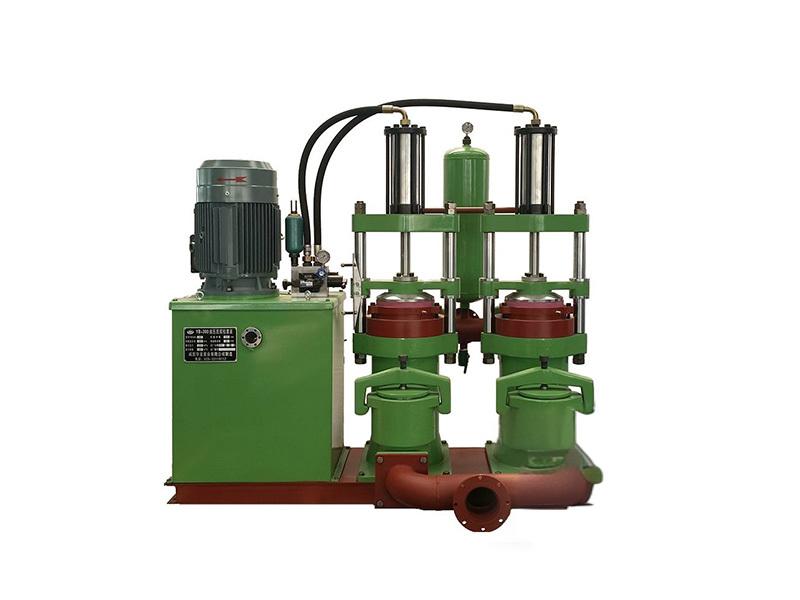

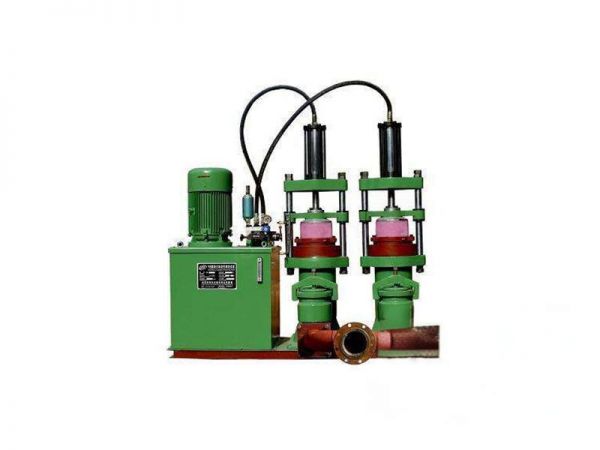

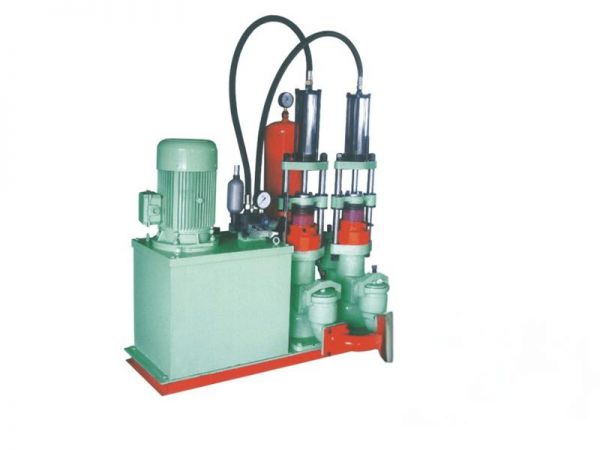

Hesaide piston pump is also called hydraulic ceramic plunger mud pump, which adopts hydraulic drive. In addition, its plunger is made up of alumina ceramic which has good wear-proof and chemical erode resistant property. We have multiple series for you to choose, such as YB85, YB120, YB140, YB200, YB250 and YB300. You can use it for conveying slurry, coal water slurry, suspension of kaolin and non-metallic minerals, liquid food, electronic paste, magnetic materials and so on. In addition, it can convey dense suspension whose solid content is more than 70%. Therefore, it can be used with spray drying tower, filter presses and other drying equipment.
Core parameters
Flow Rate: 3-36 m³/h
Pressure: 0-2.5 MPa
Hesaide piston pump is also called hydraulic ceramic plunger mud pump
The Hesaide YB Series Hydraulic Ceramic Plunger Pump is a high-performance slurry transfer solution featuring:
Alumina ceramic plungers for superior wear & corrosion resistance
Hydraulic drive system for smooth, powerful operation
Three pump variants (High-Pressure, High-Flow, Variable) for diverse applications
70%+ solids handling capability for dense slurries
✔ Extreme Durability - Ceramic components resist abrasion 5x longer than steel
✔ Precision Flow Control - Automatic pressure/flow adjustment based on slurry density
✔ Silent Operation - <75dB noise level at 1m distance
✔ Energy Efficient - Hydraulic system reduces power consumption by 30% vs mechanical pumps
| Series | Best For | Max Flow (m³/h) | Max Pressure (MPa) | Key Benefit |
|---|---|---|---|---|
| YB85 | Lab/Precision | 3 | 2.5 | Compact size |
| YB120 | General industrial | 7.1 | 2.5 | Balanced performance |
| YB140 | Continuous processes | 10 | 2.5 | Dual pressure options |
| YB200 | Heavy-duty transfer | 19 | 3.0 | High-volume pumping |
| YB250 | Long-distance piping | 30 | 2.5 | Economic large-scale |
| YB300 | Extreme conditions | 36 | 3.0 | Maximum throughput |
| Model | Flow (m³/h) | Pressure Range (MPa) | Motor Power (kW) | Plunger Size (mm) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| YB85 | 3 | 0-2.5 | 15 | Φ57(Φ48) | 420 | 1215×850×1500 |
| YB120 | 7.1 | 0-2.5 | 24 | Φ89(Φ76) | 850 | 1580×1000×1600 |
| YB140 | 10 | 0-2.5 | 26 | Φ89(Φ76) | 900 | 1580×1000×1600 |
| YB200 | 19 | 0-3.0 | 22 | Φ108(Φ89) | 1200 | 1690×1230×1900 |
| YB250 | 30 | 0-2.5 | 18 | Φ108(Φ108) | 1400 | 1950×1300×2200 |
| YB300 | 36 | 0-3.0 | 30 | Φ140(Φ114) | 1600 | 2050×1600×2100 |
✅ Ceramic Technology - 99% Al₂O₃ plungers withstand:
pH 0-14 corrosive fluids
200°C continuous operation
10x longer lifespan than metal pumps
✅ Smart Hydraulic System
Automatic compensation for viscosity changes
0.1MPa resolution pressure control
<3% flow fluctuation
✅ Maintenance Friendly
Quick-change plunger seals (5-min replacement)
Modular valve assemblies
Sight glasses for visual inspection
Minerals Processing: Kaolin, coal slurry, metal concentrates
Industrial Waste: High-solids sludge, abrasive byproducts
Food Production: Chocolate, starch, protein slurries
Advanced Materials: Battery pastes, ceramic coatings
???? Proven Reliability - 10,000+ hours MTBF in mining applications
???? Precision Engineering - ISO 9001 certified manufacturing
???? Global Support - 24/7 technical assistance worldwide
???? Contact our engineers for viscosity-specific recommendations!
