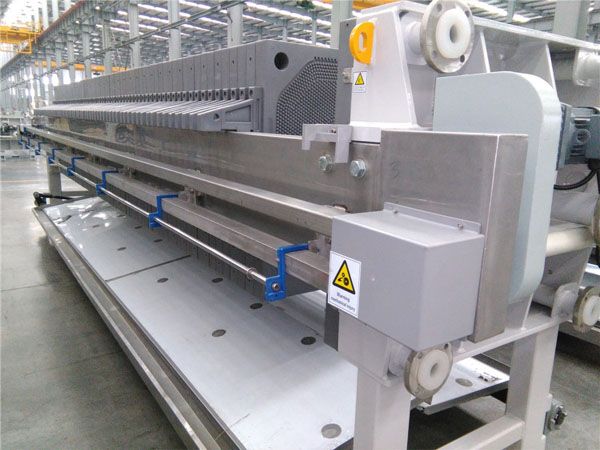

Hesaide Chamber Filter Press Environmental Protection Equipment

Key Features:

Stable performance, user-friendly operation

Metal cylinders: Seamless steel tubes

Filter plates: Precision-cast plastic-steel, resistant to high temperature/pressure

Specifications:

Parameter

Details

Chinese Name    压滤机 (Yālǜjī)

English Name    Filter Press

Category    Solid-Liquid Separation Equipment

Applications    Chemical, Pharmaceutical, Metallurgy

Origin    Early 18th Century

2. Product Specifications

Technical Parameters

Item

Range

Filtration Area    0.5–1,200 m²

Filter Plate Size    200–2,000 mm

Working Pressure    0.3–4.5 MPa

Cake Thickness    16–80 mm

Motor Power    Customizable (KW)

Materials: Stainless steel, cast iron, reinforced polypropylene, PE, etc.

Configurations:

Manual/Mechanical/Hydraulic Pressing

PLC Control

Automatic Plate Shifting

Open/Dark Flow Discharge

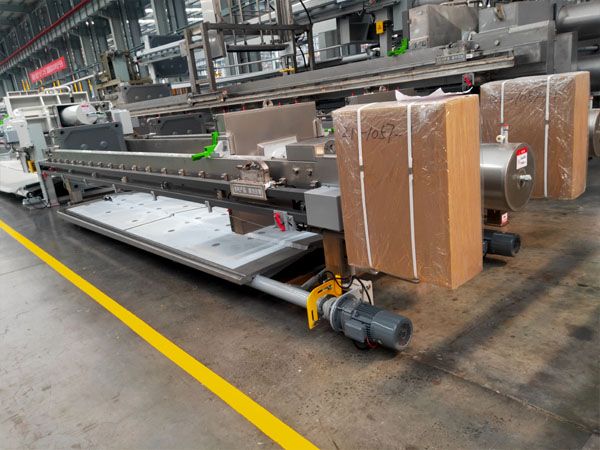

3. Structural Components

3.1 Frame

Thrust Plate: Central feed port with auxiliary ports for washing/gas.

Pressing Plate: Hydraulic-driven with roller support.

Beams: Anti-corrosion options (PVC, PP, stainless steel).

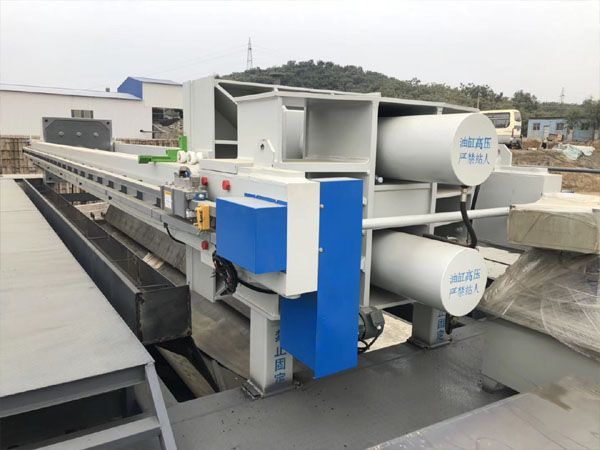

3.2 Pressing Mechanisms

Manual: Screw-jack system.

Mechanical: Motor-driven with overload protection.

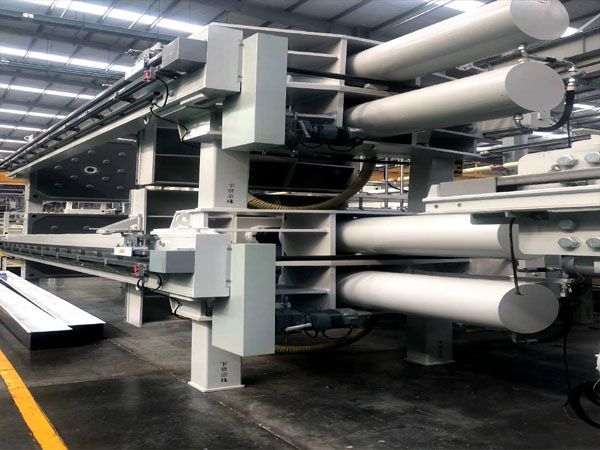

Hydraulic: Automated pressure retention (0.7–3 MPa).

3.3 Filtration System

Filter Plates: Recessed chamber design for high-pressure operation.

Filter Cloth: Material selected based on pH/solid particle size.

Diaphragm Option: Rubber membranes for secondary squeezing.

Filtration Modes:

Open Flow: Visible discharge via nozzles.

Dark Flow: Centralized pipeline discharge.

4. Classification & Applications

4.1 Plate-and-Frame Filter Press

Pressure: 0.3–3 MPa

Applications: Compressible/non-compressible slurries (<10% solids).

4.2 Chamber Filter Press

Advantage: Higher pressure (up to 4.5 MPa), no frame required.

4.3 Belt Filter Press

Features: Continuous operation, low energy consumption.

Applications: Municipal sludge dewatering.

4.4 Diaphragm Filter Press

Moisture Reduction: Cake humidity ≤50% after squeezing.

5. Installation & Maintenance

5.1 Installation

Concrete foundation with anchor bolts.

Hydraulic oil: ISO VG 20–40 (operating temperature > -5°C).

5.2 Maintenance

Daily Checks: Lubrication, filter cloth integrity.

Annual: Hydraulic oil replacement + system flush.

Critical Notes:

Never operate with insufficient filter plates.

Avoid overpressure (>4.5 MPa) to prevent plate deformation.

6. Troubleshooting

Issue 1: Misalignment During Operation

Solution: Reverse feed pipe orientation (180°) to counterbalance forces.

Issue 2: Chain Derailment

Solution: Replace 7-link chains with 3-link chains to prevent twisting.

7. Industry Applications

Sludge Treatment: Reduces moisture to 65–80%.

Emerging Tech: Ultra-high-pressure vertical filter presses (residual oil <5%).

Process Flow:
Sludge → Chemical Conditioning → Filter Press → Cake Disposal (Landfill/Incineration)
